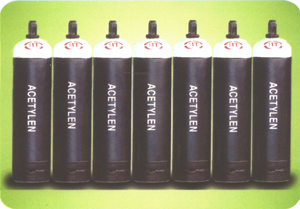

    Acetylen

    Acetylen Khí



    SẢN PHẨM:

    - Acetylen khí : (C2H2)
    - Chất lượng : 98%
    - Áp suất nạp : 25kg/(cm2)
    - Dung tích chai : 4 - 6(m3)

    Product:

    - Gas Acetylen : (C2H2)
    - Quanlity : 98%
    - Feeding pressure : 25kg/(cm2)
    - Bottle Capacity : 4 - 6(m3)

    Công dụng: Dùng để hàn cắt kim loại.
    Use: To be used for cutting metal.


    Các thông số kỹ thuật:

    Enghish Units   NormalBoiling Point
    (1 atm)
    Gas Phase Properties
    @ 32°F & @1 atm
    Liquid Phase Properties
    @ B P& @ 1 atm
    Triple Point Critical Point
    Temp. Latent Heat of Vaporization Specific Gravity Specific Heat (Cp) Density Specific Gravity Specific Heat (Cp) Temp. Pressure Temp. Pressure Density
    Substance Chemical
    Symbol
    Mol.
    Weight
    ° F BTU/lb Air = 1 BTU/lb °F lb/cu. ft Water = 1 BTU/lb °F °F psia °F psia lb/cu ft
    Acetylene C2H2 26.04 -118.4a 264c 0.906 0.383 0.07314 0.613 -- -116.0 17.7 96.8 907 14.4

    a Sublimation point       b Sublimation Enthalpy       c Triple point       d Boiling point


    Metric Units Boiling Point
    @ 101.325 kPa
    Gas Phase Properties
    @ 0° C & @ 101.325 kPa
    Liquid Phase Properties
    @ B.P., & @ 101.325 kPa
    Triple Point Critical Point
    Temp. Latent Heat of Vaporization Specific Gravity Specific Heat (Cp) Density Specific Gravity Specific Heat (Cp) Temp. Pressure Temp. Pressure Density
    Substance Chemical
    Symbol
    Mol.
    Weight
    °C kJ/kg Air = 1 kJ/kg ° C kg/m3 Water = 1 kJ/kg ° C °C kPa abs ° C kPa abs kg/m3
    Acetylene C2H2 26.04 -83.3 614.0c 0.906 1.6 1.1716 0.613 -- -82.2 122 36 6250 228

    a Sublimation point       b Sublimation Enthalpy       c Triple point       d Boiling point
